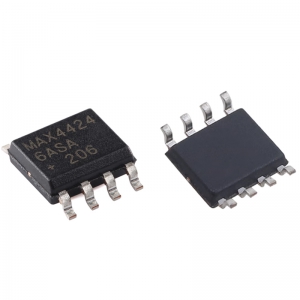

SOP-8 (Small Outline Package with 8 pins) is a common surface mount technology (SMT) packaging form, belonging to a type of SOIC (Small Outline Integrated Circuit) packaging.

SOP-8 packaging is widely used in various electronic devices due to its small size and moderate number of pins.

characteristic:

Miniaturization: The miniaturization design of SOP-8 packaging saves valuable circuit board space, making it suitable for portable and space limited applications.

Double row pins: The pins in the SOP package are arranged in two rows, with four pins in each row, for a total of eight pins.

Good electrical performance: The SOP package has a moderate pin spacing, providing good electrical performance and is suitable for medium speed digital and analog circuits.

Easy to automate assembly: SOP packaging is suitable for high-speed surface mount technology and facilitates automated production lines.

Structure:

The structure of SOP-8 packaging includes a rectangular or square plastic shell with a row of straight pins protruding outward on each side. The pitch is usually 1.27mm (50 mils), which is the standard pitch for SOP packaging.

Size:

The size of SOP-8 packaging may vary depending on the specific manufacturer and product model, but usually follows JEDEC standards. Generally speaking, the size of SOP-8 packaging is roughly within the following range:

Package length: usually between 4.9mm and 6.3mm.

Package width: usually between 3.9mm and 5.1mm.

Package thickness: usually between 1.0mm and 1.75mm.

The length and width of pins may also vary according to standards, but they are usually designed to be sturdy enough to withstand thermal and mechanical stresses during the welding process.

Application:

SOP-8 packaging is commonly used in various integrated circuits, including operational amplifiers, comparators, analog switches, voltage regulators, sensor interfaces, low-power microcontrollers, EEPROM memory, etc. Due to its miniaturization characteristics, SOP is packaged in consumer electronics

Computer peripherals, communication equipment, and other fields have been widely used.

matters needing attention:

When designing and soldering SOP-8 packaging, the following points need to be noted:

Pad design: PCB design needs to be based on the pad layout provided by the manufacturer to ensure correct soldering and alignment.

Welding process: The welding of SOP packaging requires precise temperature control and time management to avoid overheating or cold welding.

Thermal management: Although not the main consideration in SOP packaging, heat dissipation still needs to be considered in high-power applications.

When selecting SOP-8 packaging, reference should be made to the manufacturer's data manual and application notes for detailed dimensional information, recommended design guidelines, and welding process parameters. Due to its compact size and moderate number of pins, SOP-8 packaging is widely used in modern electronic production

It is very popular in product design, especially in compact devices that require a certain number of I/O pins.
