Safety capacitors are a special type of capacitor designed to safely process signals on AC power lines in electronic devices. The main characteristic of safety capacitors is that they can meet strict electromagnetic interference (EMI) and electromagnetic compatibility (EMC) standards without affecting equipment performance. These types of capacitors are commonly used to suppress electromagnetic interference on power lines while ensuring that they do not pose a risk of electric shock to the human body in the event of a malfunction.

characteristic:

Safety: Safety capacitors are specially designed and tested to ensure safety under both normal and fault conditions, especially in high voltage environments.

Certification marks: They usually carry specific certification marks, such as UL (Underwriters Laboratories), VDE (Verband der Elektrotechnik), ENEC (European Norms Electrical Certification), etc., indicating that they comply with international safety standards.

High voltage resistance: Safety capacitors can withstand high voltages, usually between hundreds to thousands of volts.

Low leakage current: They are designed with lower leakage current to reduce safety risks to the human body.

Stability: Safety capacitors have good electrical stability and reliability, suitable for long-term operation in harsh environments.

Application:

Power filtering: used for common mode and differential mode filtering on power lines to reduce electromagnetic interference.

X capacitor and Y capacitor: At the power input, X capacitor is used to suppress differential mode noise, while Y capacitor is used to suppress common mode noise.

Wireless communication: Used for antenna coupling and decoupling in wireless communication equipment.

Medical equipment: used in medical equipment to ensure the safety of patients and operators.

Household appliances: Used for EMI filtering in household appliances such as televisions, microwaves, and air conditioners.

Type:

Safety capacitors are mainly divided into two categories:

X capacitor: used for differential mode filtering, connected between the live and neutral lines, to filter out interference between power lines. X capacitors are classified into X1, X2, and X3 levels based on their withstand peak pulse voltage.

Y capacitor: used for common mode filtering, connected between live/neutral and ground wires, used to filter out interference between power lines and ground wires. Y capacitors are classified into Y1, Y2, Y3, and Y4 levels based on their withstand peak pulse voltage.

matters needing attention:

When selecting and using safety capacitors, the following points should be noted:

Certification: Ensure that capacitors have appropriate certification to comply with local safety regulations.

Voltage level: Select the appropriate voltage level based on the operating voltage of the application.

Leakage current: Consider the leakage current limitation of the equipment and choose a suitable Y capacitor.

Environmental conditions: Select the appropriate type of capacitor based on the operating environmental conditions of the equipment, such as temperature and humidity.

Safety capacitors, especially X and Y capacitors, are commonly used for filtering power lines to reduce electromagnetic interference (EMI). They come in various packaging and sizes to meet different application requirements. The following are some common safety capacitor packaging and dimensions:

Axial Led:

Cylindrical: This type of safety capacitor is commonly used in older electronic devices, and their size can vary greatly depending on the capacitance value and voltage level. The common diameter ranges from a few millimeters to tens of millimeters, and the length also ranges from a few millimeters to tens of centimeters.

Surface Mount:

Rectangular SMT: This type of safety capacitor has a smaller size and is suitable for modern high-density circuit board design. Common sizes include:

0402 (1.0mm x 0.5mm)

0603 (1.6mm x 0.8mm)

0805 (2.0mm x 1.25mm)

1206 (3.2mm x 1.6mm)

1210 (3.2mm x 2.5mm)

1808 (4.5mm x 2.0mm)

1812 (4.5mm x 3.2mm)

2220 (5.6mm x 5.0mm)

Radial Led:

Disk shaped: This type of safety capacitor is usually used for lower frequency filtering applications, and its size can range from a few millimeters to a few centimeters.

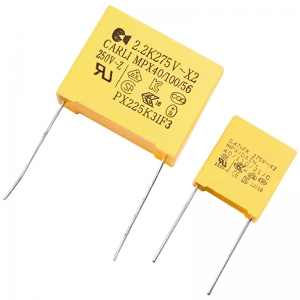

Rectangular: This type of safety capacitor has a larger size and is usually used for higher power applications. The size can vary depending on the specific model and manufacturer.

matters needing attention:

Certification: Safety capacitors must comply with specific safety standards, such as UL, VDE, ENEC, etc. When selecting, it should be ensured that the capacitor has the corresponding certification mark.

Voltage level: The voltage level of the safety capacitor must be higher than or equal to the maximum working voltage in the circuit.

Leakage current: For Y capacitors, leakage current is an important consideration factor as it directly relates to the safety of the equipment.

Environmental conditions: Consider what environmental conditions the capacitor will operate under, such as temperature, humidity, etc., and choose the appropriate capacitor type and packaging.

Due to the wide variety of safety capacitors, the specific packaging and size may vary depending on the manufacturer and product line. When selecting safety capacitors, reference should be made to the detailed product specifications and data sheets provided by the manufacturer to ensure that the selected capacitor meets design requirements and safety standards.
