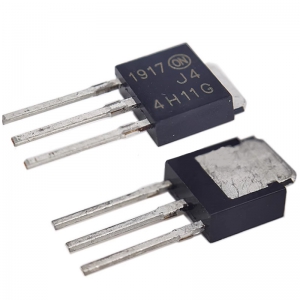

TO-251 package, also known as IPAK (Isolated Package) or TO-220 Full Pack, is a type of packaging for power semiconductor devices. It is a surface mount (SMD) package, but it is also commonly used in through-hole mount (THD) applications. The TO-251 package was developed to meet the requirements of low to medium power density and good heat dissipation performance.

characteristic:

Low to medium power processing capability: The TO-251 package is designed to handle low to medium power levels and is suitable for power management, motor drives, and other applications that require low to medium currents.

Good thermal performance: There is a metal pad at the bottom of the package that can be directly connected to the heat dissipation copper foil on the PCB or fixed to the heat sink by screws, which helps effectively transfer heat from the internal semiconductor chip to the external environment.

Compatibility between surface mount and through-hole mount: The TO-251 package can be installed through both surface mount technology and traditional through-hole insertion, providing design flexibility.

Reliability: Due to its sturdy structure and excellent heat dissipation design, the TO-251 package has high reliability in low to medium power applications.

Structure:

TO-251 packaging typically consists of a plastic shell and an internal metal substrate, which comes into contact with the semiconductor chip and plays a role in heat dissipation. The top of the package may have additional metal sheets or other heat dissipation enhancement structures. Pins extend from one or both sides of the package for electrical connections.

Size:

The size of TO-251 packaging may vary depending on the specific manufacturer and product model, but usually follows industry standards. Generally speaking, the size of the TO-251 package is roughly within the following range:

Package length: usually between 9.0mm and 10.0mm.

Package width: usually between 6.5mm and 7.0mm.

Package thickness: usually between 4.5mm and 5.0mm.

Application:

TO-251 packaging is commonly used in transistors, regulators, operational amplifiers, comparators, voltage references, and other power semiconductor devices. These devices are widely used in power supply, DC-DC converters, consumer electronics, automotive electronics, industrial control, and other low to medium power electronic devices.

matters needing attention:

When designing and soldering TO-251 packaging, the following points need to be noted:

Pad design: PCB design needs to be based on the pad layout provided by the manufacturer to ensure correct soldering and alignment.

Welding process: The welding of TO-251 packaging requires precise temperature control and time management to avoid overheating or cold welding.

Thermal management: In low to medium power applications, heat dissipation issues must be considered and may require the use of cooling solutions such as heat planes, heat sinks, or fans.

When selecting TO-251 packaging, reference should be made to the manufacturer's data manual and application notes for detailed dimensional information, recommended design guidelines, and welding process parameters. The TO-251 package is very popular in the design of low to medium power electronic products due to its low to medium power processing capacity and good heat dissipation performance.
